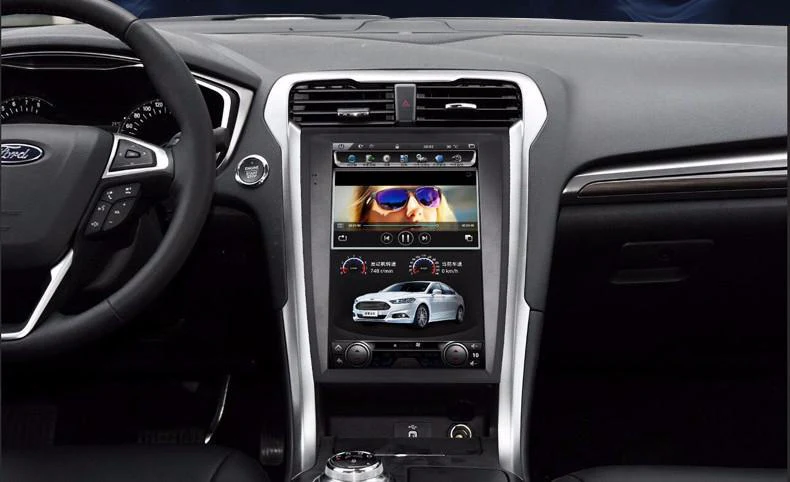

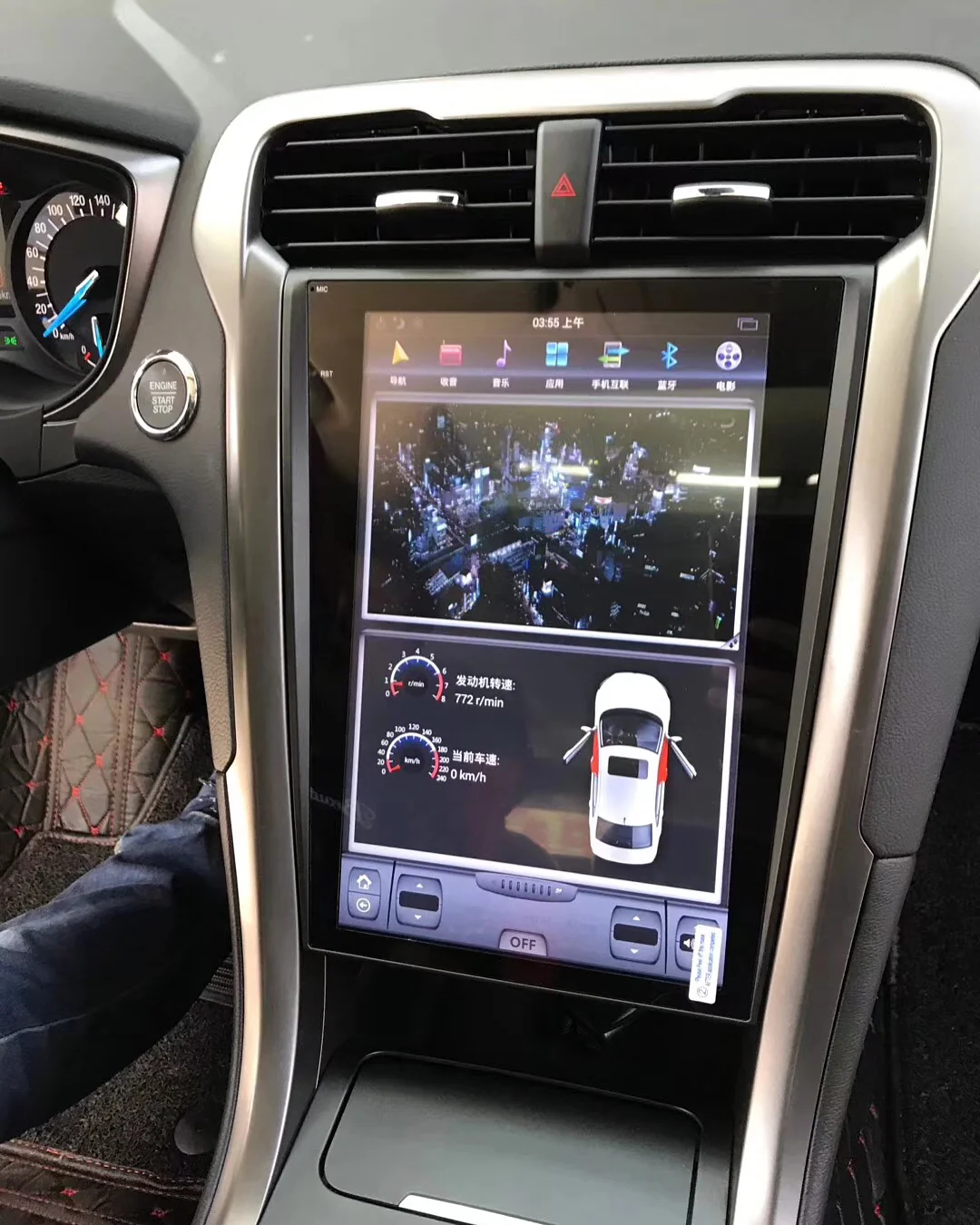

Explore our latest Tesla Style Android Radios for Fusion 2013 - 2017. Unique vertical screen, Android system, bluetooth handsfree calling & music, video playback and thousands of apps waiting for you to explore.

G6 Fully Loaded comes with built-in CarPlay/Android auto, bluetooth 5.0 and voice command.

It also has HDMI output and are AHD backup camera compatible.

Factory SONY Amp requires bypass. The SYNC retaining Tesla style does not require amp bypassing.

https://rhinoradios.com/products/ford-mondeo-fusion-2014-2018-12-1-vertical-screen-android-radio-tesla-style-with-sync-2-and-sync-3-retaiend

Description:

This Android radio will replace your current radio in your vehicle. It gives your vehicle a clean and neat look while giving you access to millions of Android apps and expanding your connectivities. At the same time, this Android radio retains most if not all of your vehicle's original features. This Tesla style Android radio also serves as a platform for you to put on many add-ons to further expand your capability on the road. Some examples are HDTV, CarPlay & Android Auto module, portable DVD player, TPMS and more.

This Android radios is fully plug and play. It does not require any wiring or soldering. A set of complimentary Dash Removal Kit will be provided in the package.

Demo Video

Features:

Vehicle information.

1. Backup image (able to support up to 3 cameras like Front & Right side cameras)
2. Backup radar display

AC and entertainment control

1. AC and heat
2. Ventilated seat and heated seat
3. Steering wheel control ( volume, next/previous tracks)
4. FM/AM Radio
5. Play music from storage/USB drive
6. Screen mirroring of you phone both android & iPhone. (Only one can be mirrored at a time.)
7. Bluetooth calling / music (built in Mic but you can request an external one)
8. Accept external add-ons like CD player, digital TV, TPMS, Bird view 360 cameras CarPlay & Android auto module etc)
9. Run music apps from Google Play store, like Pandora and iHeart Radios.

Built-in GPS

1. Able to use any Navigation App online or offline.

Aftermarket Amplifier

1. Unit comes with four pre-amp output
2. For PX6 it comes with a dedicated sub output.


Dedicated dash cam input.

1. It may need a USB drive to store recorded file depending on the dash cam you use.
2. Automatically stores your dash cam image to USB or on board storage.

Availability:

Local Stock items are shipped from California.

Otherwise items will ship from China.

Compatibility:

This unit has two versions, one supports the "manual AC" the other one supports the "automatic AC". Please choose what kind of AC control you have on your original car's dash.

Manual AC:

Automatic AC:

1. XM Satellite radio if it comes factory with your car.

You will either use Sirius app via Wi-Fi or purchase Commander Touch Module from Sirius to retain such feature.

2. Voice command.

You can download Google Assistant to retain voice control feature.



What is in the box?

1. Display
2. Main box
3. A bag of harness/wires with complimentary Dash Removal Kit

What do you need?

1. A cell phone or tablet to read instruction while installing
2. A flash light in case the day gets dark

Recommended Accessories

• CarPlay/Android Auto Module



Warranty

One (1) year warranty. We will fix, replace or refund if there is anything defective on the unit!

For details, please visit our warranty page.

Return Policy

30 days money back guarantee! If our product do not satisfy you, return it to us and we will fully refund you!*

For details, please visit our return policy page.

*Conditions apply

Technical Specification:

Operating System	Android	11
Processors	CPU	quadcore Cortex-A73 2.0GHz + quadcore Cortex-A53 1.8Ghz
	MCU	G6
Storage		64G / 128G eMMC FLASH
Memory		4G / 8G LPDDR4X
Screen	Display	LCD G+G Multi-Touch display with IPS technology
	Resolution	10.4" / 12.1": 1024 x 768. 11.8" / 13.6" / 16": 1920 x 1080. 13": 1600x 1200
Navigation	GPS	GPS / Beidou / GLONASS
	Map	Google Map / IGO / SYNGIC
Connectivity	Bluetooth	Bluetooth 5.0 Supports aptX hi-res Audio, OBD, CarPlay, and multiparty call
	Radio	SI4745
	4G Network	LTE-FDDD: B1/3/5/7/8/20/28 WCDMA: B1/2/5/8 GSM: 850/900/1800/1900MHz
	Wi-Fi	2.4G+5G 802.11 a/b/g/n/ac
	USB	3, supports dash cam recording.
	RCA	AHD 1080 and CVBS
Media	Amplifier	TDA7850 IC 4 x 45W
	Audio format supported	mp3, wma, ape, flac, aac and more
	Video format supported	mp4, avi, wmv, rmvb, flv, mkv, mov, ts, 3gp, mpg and more
OEM Feature Retained		HVAC control
		USB
		Backup camera
		Dash camera recording
		Backup radar
		OBD Information
Extra Connectivity		Extra USB input
		Auxiliary input
		Front and right side camera input
